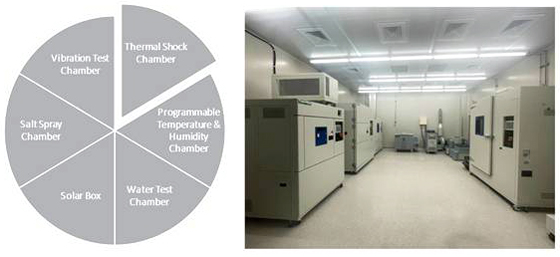

TD internal testing laboratory is equipped with vibration testing machine, salt spray testing machine, thermal shock testing machine, constant temperature and humidity testing machine, water testing machine, etc., which can verify the regulations of various countries and the requirements of major car manufacturers

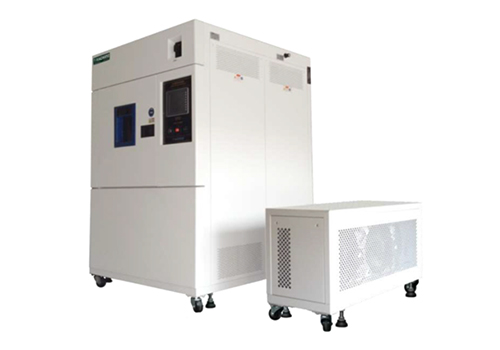

| Name | Three-box cold and heat shock testing machine |
|---|---|
| Model | TMJ-9709B |
| Inner box size W × D × H mm | 600 x 500 x 500 |
| Outer box size W × D × H mm | 1780 x 1450 x 2150 |
| Structure | Divided into high temperature area, low temperature area, test area |
| Test Specifications | 2 ZONE test: 150°C ~ -50°C 3 ZONE test: 150°C ~ RT ~ -50°C |
| Analytical accuracy | 0.1°C |
| Control precision | ±2°C |
| The heating time of the first high temperature zone | From room temperature to 180°C, ≤ 40 minutes |
| Cooling time in the first low temperature zone | From room temperature to -70°C, ≤ 50 minutes |
| Test area temperature recovery time | - 50°C — 150°C ≤ 5 minutes |
| Model | TMJ-9712C ( 800L ) |
|---|---|
| Internal Dimensions W x D x H mm | 1000 x 800 x 1000 |
| External Dimensions W x D x H mm | 1650 x 1100 x 1860 |
| Temperature range | -40°C ~ 150°C |
| Humidity range | 10%RH ~ 98% RH |
| The average temperature rise and fall | -40°C - 150°C heating rate : ≥ 3°C/min 150°C ~ -40°C cooling rate ≥ 3°C/min |
| Temperature and humidity resolution | Temperature : 0.1°C Humidity : 0.1%RH |
| Temperature and Humidity Fluctuation | Temperature : ± 0.2°C Humidity : ± 2%RH |
| Temperature and humidity uniformity | Temperature uniformity : ≤ ± 1.0°C Humidity uniformity when ≤ 75%RH ≤ ±5%RH Humidity uniformity ≤ ±3%RH when ≥ 75%RH |

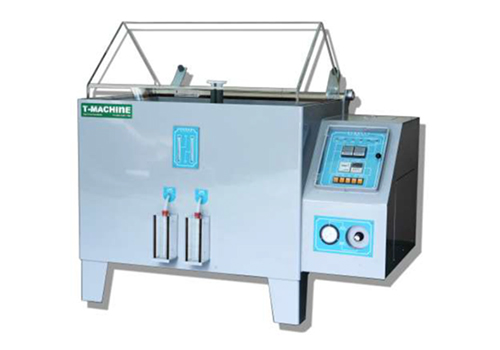

| Model | TAMIJ-9701 |
|---|---|
| Internal Dimensions W x D x H mm | 900 x 600 x 500 |
| External Dimensions W x D x H mm | 1420 x 780 x 1280 |
| Brine standard | NSS. CASS |
| Temperature range | 35°C ~ 50°C |
| Humidity range | 85%RH ~ 98% RH |
| Fog fall | 1.5 ± 0.5 ml/hr |
| Salt water spray | Laboratory : 35°C ± 1°C Saturated Air Tank : 47°C ± 1°C |
| Copper acetate salt spray | Laboratory : 50°C + 1°C Saturated Air Tank : 63°C + 1°C |
| Model | TMJ-9707B |
|---|---|
| Internal Dimensions W x D x H mm | 800 x 800 x 900 |
| External Dimensions W x D x H mm | 1360 x 1320 x 1920 |
| With cooling water tank W x D x H mm | 1100 x 435 x 360 |
| Name | Waterproof testing machine (touch LCD controller) |
|---|---|
| Model | TMJ-9707B |
| Internal Dimensions W x D x H mm | 1300 x 1200 x 1700 |
| External Dimensions W x D x H mm | 2000 x 1350 x 2000 |
| Measuring range | JIS : R1,R2, S1. S2 IPX3 ~ IPX6 six degree of protection test |
| Feature selection
1 JIS water test |
Tested by water : RI, SI, R2, S2 Function 1 : Straight pipe rain test : Test range : RIS1 - R2S2 R1 : 1.9 Lmin 0.1 kg/cm2 10kpal R2 : 3.2 Lmin 0.3 kg/cm2 30kpal S1 : 24.5 Lmin 1.0 kg/cm2 100kpa S2 : 39.2 Lmin 3.1 kg/cm2 300kpa |
| Feature selection
2 pendulum rain IPX3 IPX4 |
Flow : 0 - 0.07 L/min per hole adjustable Swing Tube Radius : R200, R400 Aperture : Φ0.4 mm Turntable speed : 0~1 rpm Swing angle : ± 20° ~ ± 180° |
| Feature selection
3 water spray test IPX5 IPX6 |
Flow: Maximum flow 100 L/min adjustable The outlet flow can be stably adjusted as required to reach 12.5 ± 1 L/min (nozzle diameter 6.3 mm), and flow 100 ± 5 L/min (nozzle diameter 12.5 mm) Distance: The distance between the nozzle and the sample is 2.5 - 30 m adjustable |
a. Frequency response: 2-3000Hz
b. Maximum acceleration: 100G
c. Maximum speed: 200 cm/sec
d. Maximum displacement: 51 mm
e. Maximum rated output: 1000 kgF
f. Maximum load: 300 Kgw
g. Armature mass : 10 Kgw
h. Armature diameter: Φ240 mm
i. Vibrator Dimensions: 890 x 750 x 850 ( L x W x H ) mm
